Liên hệ để báo giá

In Stock
  • Cung cấp toàn quốc Ruckus 901-T610-Z200 T610 802.11ac Wave 2 4×4:4 Outdoor.
  • 512 clients per AP, Bandwitch 1733 Mbps, IP-67, omni-directional Beamflex+ coverage Wireless Access Point. Support 16 SSID
  • Hàng chính hãng 100%, bảo hành 12 tháng.
So sánh

Mô tả

Mô tả tổng quan Access Point Ruckus 901-T610-Z200 Outdoor 802.11ac Wave 2 4×4:4 Wi-Fi

Lưu ý: Sản phẩm này sử dụng cho các quốc gia sau:  Algeria, Egypt,Israel,Morocco, Tunisia, và Việt Nam.

Được thiết kế cho các địa điểm ngoài trời có mật độ người sử dụng cao nhất, điểm truy cập Ruckus 901-T610-Z200 cung cấp khả năng kết nối cực nhanh cho các triển khai ngoài trời có mật độ trung bình, với tốc độ dữ liệu lên đến 2.5Gbps – tốc độ dữ liệu cao nhất có sẵn cho các máy Client.

Công nghệ ăng-ten thích ứng Ruckus được cấp bằng sáng chế cải thiện chất lượng tín hiệu cho mọi thiết bị được kết nối, ở khắp mọi nơi. Ruckus 901-T610-Z200 cung cấp tất cả điều này trong một thiết bị cấp công nghiệp có thể chịu được sự khắc nghiệt trong thực tế bất kỳ không gian ngoài trời nào.

Ruckus Access Point 901-T610-Z200 có thể được triển khai nhanh chóng và dễ dàng bằng các bộ controller SmartZone ZoneDirector Unleashed Cloud Wi-Fi của Ruckus hoặc chạy độc lập ở chế độ standalone và cho phép kết nối lên tới 512 Client trên 1 AP.

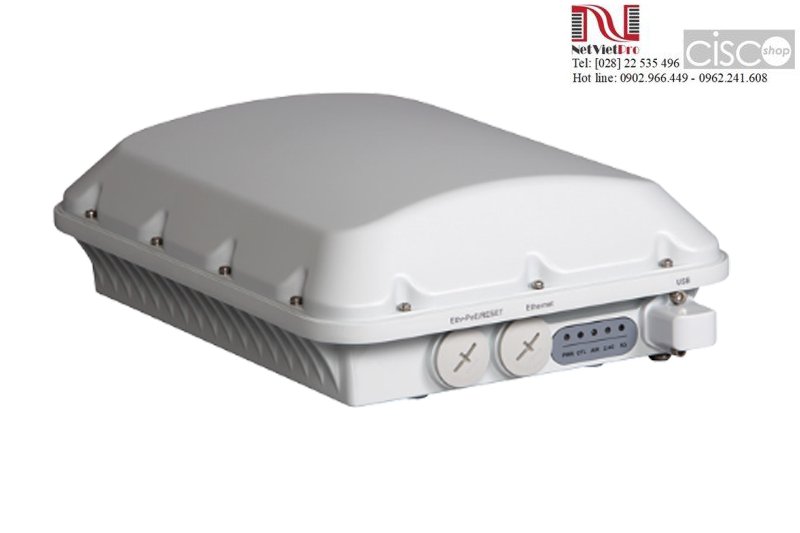

Access Point Ruckus 901-T610-Z200 Outdoor 802.11ac Wave 2 4x4:4 Wi-Fi
Access Point Ruckus 901-T610-Z200 Outdoor 802.11ac Wave 2 4×4:4 Wi-Fi

Thông số kỹ thuật Ruckus 901-T610-Z200

WI-FI
Wi-Fi Standards IEEE 802.11a/b/g/n/ac Wave 2
Supported Rates • 802.11ac: 6.5 to 1,733Mbps (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80)
• 802.11n: 6.5 Mbps to 800Mbps (MCS0 to MCS31)
• 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps
• 802.11b: 11, 5.5, 2 and 1 Mbps
Supported Channels • 2.4GHz: 1-13
• 5GHz: 36-64, 100-144, 149-165
MIMO • 4×4 SU-MIMO
• 4×4 MU-MIMO
Spatial Streams • 4 SU-MIMO
• 3 MU MIMO
Channelization 20, 40, 80MHz
Security • WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i, Dynamic PSK
• WIPS/WIDS
Other Wi-Fi Features • WMM, Power Save, TxBF, LDPC, STBC, 802.11r/k/v
• Hotspot
• Hotspot 2.0
• Captive Portal
• WISPr
RF
Antenna Type • BeamFlex+ adaptive antennas with polarization diversity
• Adaptive antenna that provides over 4,000 unique antenna patterns per band
Antenna Gain (max) • Omni – 3dBi for both 2.4 and 5GHz
• Sector – 6dBi for 2.4GHz and 8dBi for 5GHz
Peak Transmit Power (aggregate across MIMO chains) • 2.4GHz: 28dBm
• 5GHz: 28dBm
BeamFlex+ SINR Transmit Power Gain Up to 6 dB
BeamFlex+ SINR Receive Power Gain Up to 4 dB
Minimum Receive Sensitivity • -104dBm
Frequency Bands • ISM 2.4-2.484GHz
• U-NII-1 5.15-5.25GHz
• U-NII-2A 5.25-5.35GHz
• U-NII-2C 5.47-5.725GHz
• U-NII-3 5.725-5.85GHz
PERFORMANCE AND CAPACITY
Peak PHY Rates • 2.4GHz: 800Mbps
• GHz: 1733Mbps
Client Capacity Up to 512 clients per AP
SSID Up to 16 per AP
RUCKUS RADIO MANAGEMENT
Antenna Optimization • BeamFlex+
• Polarization Diversity with Maximal Ratio Combining (PD-MRC)
Wi-Fi Channel Management • ChannelFly
• Background Scan Based
Client Density Management • Adaptive Band Balancing
• Client Load Balancing
• Airtime Fairness
• Airtime-based WLAN Prioritization
Mobility SmartRoam
Diagnostic Tools • Spectrum Analysis
• SpeedFlex
NETWORKING
Controller Platform Support • SmartZone
• ZoneDirector
• Unleashed2
• Cloud Wi-Fi
• Standalone
IP IPv4, IPv6
Mesh SmartMesh™ wireless meshing technology. Selfhealing Mesh
VLAN • 802.1Q (1 per BSSID or dynamic per use based on RADIUS)
• VLAN Pooling
• Port-based
802.1x Authenticator & Supplicant
Tunnel L2TP, GRE, Soft-GRE
Policy Management Tools • Application Visibility and Control
• Access Control Lists
• Device Fingerprinting
• Rate Limiting
PHYSICAL INTERFACES
Ethernet • 2 x 10/100/1000 Mbps ports, RJ-45
• LACP
USB 1 USB 2.0 port, Type A connector
PHYSICAL CHARACTERISTICS
Physical Size • 31.7 (L), 24.1 (W), 9.5 (H) cm
• 12.8 (L) x 9.5(W) x 3.7(H) in
Weight 2.7kg (6lbs) without mounting hardware
Ingress Protection IP-67
Mounting • Wall
• Pole Mount
Physical Security • Hidden latching mechanism
• Kensington lock
• T-bar Torx
Operating Temperature -40ºC (-40ºF) to 65ºC (149ºF)
Operating Humidity Up to 95%, non-condensing
CERTIFICATIONS AND COMPLIANCE
Wi-Fi Alliance • Wi-Fi CERTIFIED™ a, b, g, n, ac
• Passpoint®, Vantage
Standards Compliance • EN 60950-1 Safety
• EN 60950-22 Safety
• EN 61000-4-2/3/5 Immunity
• EN 50121-1 Railway EMC
• EN 50121-4 Railway Immunity
• IEC 61373 Railway Shock & Vibration
• EN 62311 Human Safety/RF Exposure
• WEEE & RoHS
• ISTA 2A Transportation

POWER Ruckus 901-T610-Z200

Power Supply Feature Limitation Max Power Consumption
802.3af • 2.4GHz radio: 2×2, 18dBm per chain
• 5GHz radio: 4×4, 20dBm per chain
• 2nd Ethernet port & USB disabled
10.4W
802.3at • 2.4GHz radio: 4×4, 22dBm per chain
• 5GHz radio: 4×4, 20dBm per chain
• 2nd Ethernet port & USB enabled
25W

Các tùy chọn cho Ruckus 901-T610-Z200

902-0125-0000 Secure articulating mounting bracket
902-0127-0000 Extended cap to accommodate up to 6 cm long USB dongle
902-0180-XX00 Spares of Power over Ethernet (PoE) Injector (10/100/1000 Mbps) quantity of 1 unit (7762-series, 7782-series, 8800-S, T610 and T710 access points)
902-0183-0000 Spare Data Connector for T300-series, 7782-series, 8800, T610 and T710; contains 1 weatherizing data cable gland
